Siemens 6ES7221-1BH22-0XA0 digital module



Introduction to Siemens 6ES7221-1BH22-0XA0 digital module
6ES7221-1BH22-0XA0          SIMATIC S7-200, DIGITAL INPUT
SIMATIC S7-200, DIGITAL INPUT EM 221, FOR S7-22X CPU ONLY, 16DI, 24V DC, SINK/SOURCE INPUT

Data sheet of Siemens 6ES7221-1BH22-0XA0



SIMATIC S7-200, DIGITAL INPUT EM 221, FOR S7-22X CPU ONLY, 16DI, 24V DC, SINK/SOURCE INPUT

Input current
from backplane bus 5 V DC, max. 70 mA
Power losses
Power loss, typ. 3 W
Digital inputs
Number/binary inputs 16
m/p-reading Yes
Input characteristic curve acc. to IEC 61131, Type 1 Yes
Input voltage
Type of input voltage DC
Rated value, DC 24 V
for signal "0" 0 to 5 V
for signal "1" 15 to 30 V
Input current
for signal "1", typ. 4 mA
Input delay (for rated value of input voltage)
for standard inputs
at "0" to "1", max. 4.5 ms
Cable length
Cable length, shielded, max. 500 m
Cable length unshielded, max. 300 m
Encoder
Connectable encoders
2-wire sensor Yes
Permissible quiescent current (2-wire sensor), max. 1 mA
Galvanic isolation
Galvanic isolation digital inputs
Galvanic isolation digital inputs Yes; Optocoupler
between the channels, in groups of 4
Isolation
Isolation checked with 500 V AC for 1 min.
Connection method
Plug-in I/O terminals Yes
Dimensions
Width 71.2 mm
Height 80 mm
Depth 62 mm
Weight
Weight, approx. 160 g

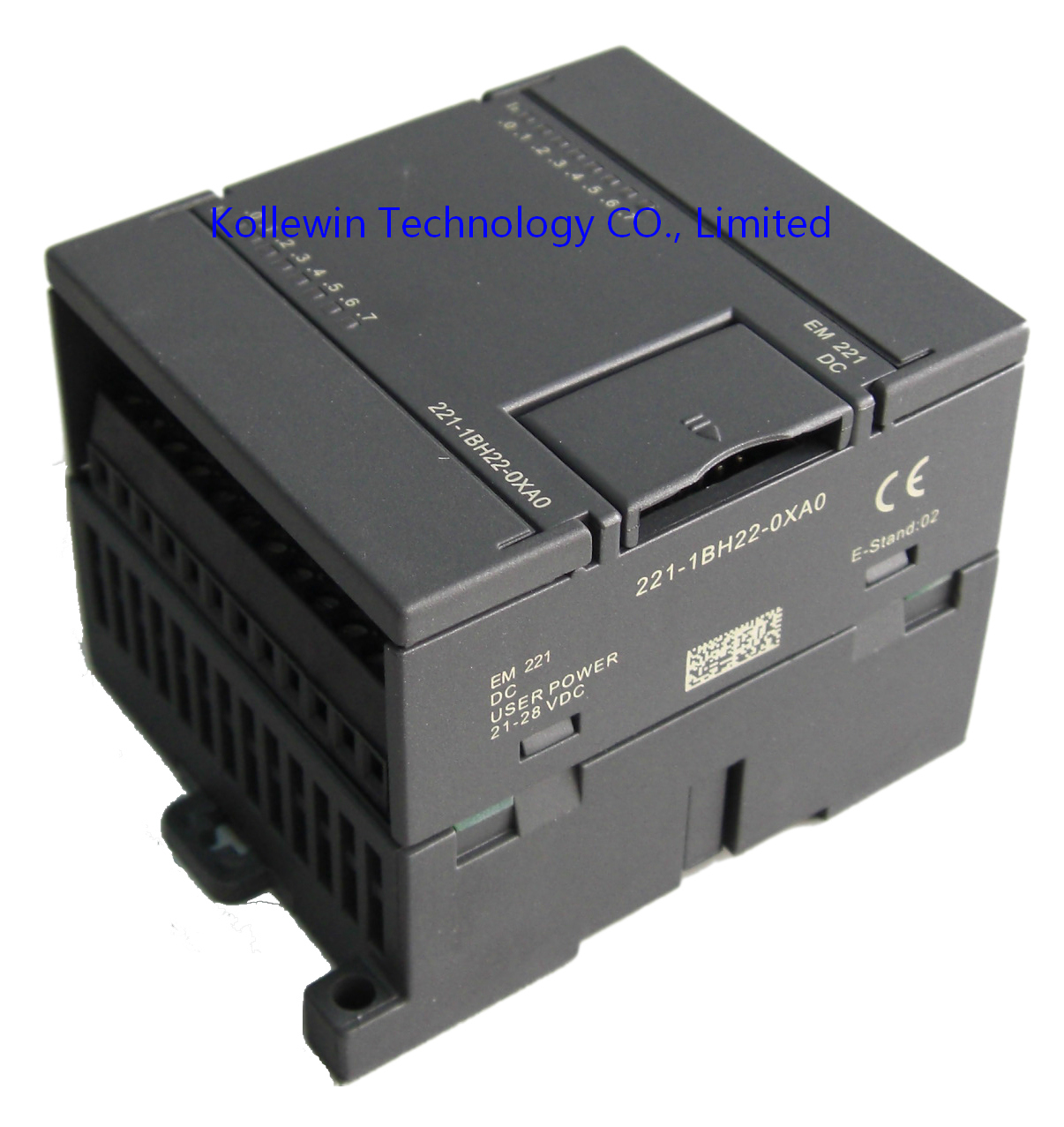

Our company have the compatible product, named 221-1BH22-0XA0.

Part#: 221-1BH22-0XA0

Unit price:USD64.00/pc  buy buttom
Description: S7-200 module
Manufacturer: Kollewin
Approx. Weight: 0.3 Kg
Warranty: 1 year
Origin: China



221-1BH22-0XA0

It's tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.



Discriptions of our compatible OEM product 222-1BF22-0XA0:

Model

EM221  16 inputs

From bus current consumption 85mA
Power loss 3W
Number of digital inputs 16
Signal input type· PNP/NPN
Input voltage range 24VDC,4mA
Maximum input voltage 30V DC
Surge voltage 35V DC,0.5s
Logic 0 signal 0~5V DC
Logic 1 signal 15~30V DC
Input delay(max) 4.5ms
Optical isolation(Galvanic)  (Field Side to Logic) 500 V AC for 1 minute
Premissible leakage current(Bero) 1mA
Cable Length 500m(Shielded )300m(Unshielded)
Dimensions(W x H x D)(mm) 71.2×80×62
Order Number 221-1BH22-0XA0






More compatible Siemens S7-200/300 modules we can offer:

Model Product Description
SM7-200 DIGITAL MODULE
  6ES7221-1BH22-0XA0 EM221 16 DI 24V DC
  6ES7221-1BL22-0XA0 EM221 32 DI 24V DC
  6ES7222-1BF22-0XA0 EM222 8DO,DC 24V
  6ES7222-1HF22-0XA0   EM222 8DO,relay
  6ES7222-1BH22-0XA0 EM222 16 DO 24V DC
  6ES7222-1HH22-0XA0 EM222 16 DO RELAY
  6ES7222-1BL22-0XA0 EM222 32 DO 24V DC
  6ES7223-1HF22-0XA0 EM223 4DI/4DO,DC 24V relay
  6ES7223-1BH22-0XA0 EM223 8 DI/ 8 DO 24V DC
  6ES7223-1PH22-0XA0 EM223 8 DI 24V DC/8 DO RELAY
  6ES7223-1BL22-0XA0 EM223 16 DI/ 16 DO 24V DC
  6ES7223-1PL22-0XA0 EM223 16 DI 24V DC/ 16 DO RELAY
  6ES7223-1BF22-0XA0 4 DI/4DO,24 VDC
  6ES7221-1BF22-0XA0 8 DI,24V DC
SM7-200 ANALOG MODULE
  6ES7231-0HC22-0XA0 EM231 4 AI x 12 Bits
  6ES7231-0HF22-0XA0 EM231 8 AI x 12/11 BIT
  6ES7231-7PC22-0XA0 EM231 4 RTD
  6ES7231-7PD22-0XA0 EM231 4 TC
  6ES7231-7PH22-0XA0 EM231 8 TC
  6ES7231-7PL22-0XA0 16AI, T/C INPUT MOD, 16BIT
  6ES7231-7PB22-0XA0 2AI, RTD INPUT MOD. 16BIT
  6ES7232-0HB22-0XA0 EM232 2 AO x 12 Bits
  6ES7232-0HD22-0XA0 EM232 4 AO x 12 Bits
  6ES7235-0KD22-0XA0 EM235 4 AI/ 1 AO x 12 Bits
SM7-300 DIGITAL MODULE
  6ES7321-1BH02-0AA0 SM321 16 DI 24 VDC
  6ES7321-1FH00-0AA0 SM321 16 DI  AC 230V
  6ES7321-1BL00-0AA0 SM321 32 DI 24 VDC
  6ES7322-1BF01-0AA0 SM322,8DO,24VDC,2A
  6ES7322-1BH01-0AA0 SM322 16 DO 24 VDC/ 0.5A
  6ES7322-1HH01-0AA0 SM322 16 DO RELAY
  6ES7322-1BL00-0AA0 SM322 32 DO 24V DC/0.5A
  6ES7323-1BL00-0AA0 SM323 16DI 24V DC/ 16DO 24V DC 0.5A
SM7-300 ANALOG MODULE
  6ES7331-1KF01-0AB0 SM331 8 AI x 13 Bits
  6ES7331-7KF02-0AB0 SM331 8 AI X 14 Bits
  6ES7331-7PF01-0AB0 SM331 8 AI,RTD
  6ES7331-7PF11-0AB0 SM331 8 AI,TC
  6ES7332-5HD01-0AB0 SM332 4 AO x 12 Bits
  6ES7332-5HF00-0AB0 SM 332 8 AO x 12 BITS
SIMATIC DP  IM 153
  6ES7153-1AA03-0XB0 SIMATIC DP, INTERFACE
IM 153-1, FOR ET 200M,
FOR MAX. 8 S7-300 MODULES
  6ES7365-0BA01-0AA0 IM 365 Rack expansion module,be deployed with a central controller and a expansion rack



More pictures for your reference:

3311kf01-00 3311kf01 331-1KF01 product 321-1BL00 S7-200 322-1BL00 322-1BH02 S7-300 331-7KF02-0AB0 332-5HD01-0AB0 321-1BL00 3211bl00 6ES7322-1BL00 321-1BH02-0AA0 321-1BH02-0AA0



Please feel free to contact me for any question!

Contact person: Miss Nancy

Skype: kollewin
E-mail: nancy@kollewin.com
Tel: +86-0755-26898905-8006
Website: www.kollewin.com
