6ES7 390-1AF30-0AA0 Siemens PLC rail

SIEMENS S7-300 PLC rail 6ES7 390-1AF30-0AA0,530 MM length.

Title German Profilschiene L=530mm
Title English Rail L=530mm

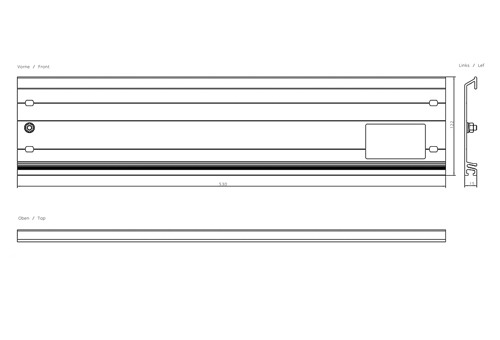

Type of object (content) Dimension drawing
Search term(s) SIMATIC
Search items/synonyms
German

Search items/synonyms
English

Product family SIMATIC Controller
Order number (e.g. 1AB1234-1AB12) 6ES7390-1AF30-0AA0



Introdution to S7-300 PLC rail 6ES7 390-1AF30-0AA0

SIMATIC S7-300, RAIL L=530MM

Version release
Product version: 000001 Firmware version: - Software version: -

Product life cycle
Delivery release Product discontinuation phase Product cancellation Product discontinuation
2005-12-15

Technical DATA:

6ES7 390-1AF30-0AA0

-

SIMATIC S7-300, RAIL L=530MM

Accessories
belongs to product S7-300
Dimensions
Width 530 mm
Height 122 mm
Weight
Weight, approx. 713 g

1AF30



Our company (Kollewin Technology CO., Limited) have a new OEM product,

named 6ES7 390-1AF30-0AA0,

it is 100% compatible with Siemens original part.


Part#: 6ES7 390-1AF30-0AA0
Description: S7-300 PLC rail,530 MM length
Manufacturer: Kollewin
PLC rail:  530 MM
Approx. Dimensions: 53.6cm x13.1cm x 2.5cm
Approx. Weight: 0.709 Kg
Warranty: 1 year
Origin: China

6ES7 390-1AE80-0AA0-1

More details: Datasheet Service SIEMENS 6ES7390-1AF30-0AA0 PLC RIAL USER'S MANUAL

Technical connections:  Technical-connection-1AF30



We also have below OEM PLC rails

6ES7 390-1AJ30-0AA0 S7-300 PLC rail,830 MM length.
6ES7 390-1AB60-0AA0 S7-300 PLC rail,160 MM length.
6ES7 390-1AE80-0AA0 S7-300 PLC rail,482 MM length.
6ES7 390-1BC00-0AA0 S7-300 PLC rail,2000 MM length.
6ES7195-1GA00-0XA0 hot plug rail,483mm
6ES7195-1GF30-0XA0 hot plug rail,530mm
6ES7195-1GG30-0XA0 hot plug rail,620mm
6ES7195-1GC00-0XA0 hot plug rail,2000mm



More compatible Siemens accessories we can offer:

Model Short Description
6ES7 972-0BA12-0XA0 Profibus connector,without PG port,90 degree
6ES7 972-0BB12-0XA0 Profibus connector,with PG port,90 degree
6ES7 972-0BA41-0XA0 Profibus Connector,without PG port,35 degree
6ES7 972-0BB41-0XA0 Profibus Connector,with PG port,35 degree
6ES7 972-0BA42-0XA0 Profibus Connector,without PG port,35 degree
6ES7 972-0BB42-0XA0 Profibus Connector,with PG port,35 degree
6ES7 392-1AJ00-0AA0 S7-300 front connector(20 pin)
6ES7 392-1AM00-0AA0 S7-300 front connector(40 pin)
6ES7 492-1AL00-0AA0 S7-400, FRONT CONNECTORFOR SIGNAL MODULES WITHSCRE-TYPE CONTACT, 48-PIN
6ES7 972-0BA50-0XA0 DP ,90 DEGREE ,NO PROGRAMMING INTER,FAST CONNECT
6ES7 972-0BB50-0XA0 DP ,90 DEGREE ,WITH PROGRAMMING INTER,FAST CONNECT
6ES7 972-0BA52-0XA0
6ES7 972-0BB52-0XA0
6GK1500-0FC00
6GK1500-0FC10
6GK1500-0EA02
6ES7 291-8GF23 Plus memory card (capacity of 64K)
6ES7 290-6AA20
6ES7 307-1EA01-0AA0 power supply,5A,24VDC output,120/230VAC input
6ES7 307-1KA02-0AA0 SIMATIC S7-300
STABILIZED POWER SUPPLY PS307
INPUT: 120/230 V AC
OUTPUT: DC 24 V DC/10 A
6XV1-830-0EH10 Profibus cable
6XV1840-2AH10 profibus cable
6XV1830-3EH10 profibus cable

6ES7 972-0BB12-0XA0 6ES7 972-0BA12-0XA0 6ES7 972-0BA41-0XA0_1 6ES7 972-0BB41-0XA0_1 6ES7 972-0BA42-0XA0_1 6ES7 972-0BB42-0XA0_1 6ES7 972-0BA52-0XA0_1 6ES7 972-0BB52-0XA0_1 6GK1500-0FC00_1 6GK1500-0FC10_1 6GK1500-0EA02-1 6XV1830-0EH10_1 6ES7 307-1KA01-0AA0_1 6ES7 390-1AE80-0AA0-1
