USB/MPI+ V4.0:USB to RS485 isolated adapter for SIEMENS S7-200/300/400 PLC,replace 6ES7 972-0CB20-0XA0

USB/MPI+ V4.0:USB to RS485 isolated adapter for SIEMENS S7-200/300/400 PLC,replace 6ES7 972-0CB20-0XA0

6ES7 972-0CB20-0XA0          SIMATIC S7, PC ADAPTER USB

SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT

Please read below data sheet of Siemens original 6ES7972-0CB20-0XA0:

-	SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT
Supply voltage
24 V DC	Yes
Input current
Current consumption, typ.	100 mA
Power
Power consumption, typ.	max. 2.5 W
EMC
Interference immunity against discharge of static electricity
Interference immunity against discharge of static electricity acc. to IEC 61000-4-2	Yes; 6 kV, contact discharge (to IEC 61000-4-2); 8 kV, air discharge (to IEC 61000-4-2)
Interference immunity to cable-borne interference
on the supply lines acc. to IEC 61000-4-4	Yes; 2 kV (to IEC 61000-4-4, burst)
Interference immunity on signal lines acc. to IEC 61000-4-4	Yes; 1 kV (to IEC 61000-4-4; burst; length < 3 m); 2 kV (to IEC 61000-4-4; burst; length > 3 m)
Surge immunity
on the supply lines acc. to IEC 61000-4-5	Yes; 1 kV (to IEC 61000-4-5; surge symm.); 2 kV (to IEC 61000-4-5; surge asymm.)
Immunity against high-frequency electromagnetic fields
Interference immunity against high-frequency radiation acc. to IEC 61000-4-3	Yes; 10 V/m, 80 to 1000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)
Immunity against conducted interference induced by high-frequency fields
Interference immunity against high frequency current feed acc. to IEC 61000-4-6	Yes; 10 V, 9 kHz to 80 MHz (to IEC 61000-4-6)
Immunity to magnetic field interference
Interference immunity to magnetic fields at 50 Hz	30 A/m; to IEC 61000-4-8
Emission of radio interference acc. to EN 55 022
Interference emission acc. to EN 55022, class B	Yes
Ambient conditions
Operating temperature
Min.	5 °C
max.	40 °C
Permissible temperature change	10 °C/h; Operation: 10 K/h; storage/transport: 20 K/h
Storage/transport temperature
Min.	-20 °C
max.	60 °C
Relative humidity
Operation, min.	5 %
Operation, max.	80 %; At 25 °C (no condensation)
Storage/transport, min.	5 %
Storage/transport, max.	95 %; At 25 °C (no condensation)
Vibrations
Operation, checked according to IEC 60068-2-6	Yes; 10 to 58 Hz: Amplitude 0.075 mm; 58 to 500 Hz: Acceleration 9.8 m/s2
Transport tested checked to IEC 60068-2-6	Yes; (packed) 5 to 9 Hz, amplitude 3.5 mm; 9 to 500 Hz, acceleration 9.8 m/s2
Shock test
Shock test	Tested to DIN IEC 60068-2-2; Operation: 950 m/s2 (10 g), 30 ms, 100 Shocks; Transport (packaged): 250 m/s2 (25 g), 6 ms, 1000 shocks
Dimensions
Width	105 mm
Height	58 mm
Depth	26 mm
Weight
Weight, approx.	100 g

Our company have the compatible cable, named USB/MPI+ V4.0,  can replace Siemens 6ES7 972-0CB20-0XA0.

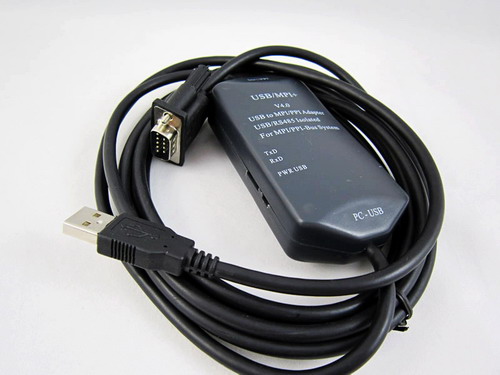

Below is the picture of our compatible OEM product USB/MPI+V4.0:

You can get it only need USD99.99/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Introduction

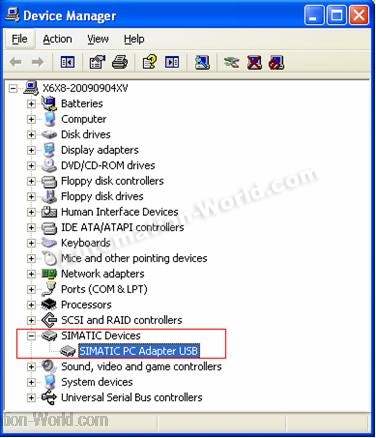

USB/MPI+ V4.0 is the USB to MPI and PPI protocol adapter, support S7-300/400 PLC MPI or S7-200 PLC PPI communication. It’s the same as Siemens PC Adapter USB except that this USB/MPI+ V4.0 doesn’t support profibus communication. Its driver is the Siemens PC_Adapter_USB driver, and choose the USB port, not the COM port.

The working power supply of this cable USB/MPI+ V 4.0 is directly from the USB port, but not the PLC programming interface.

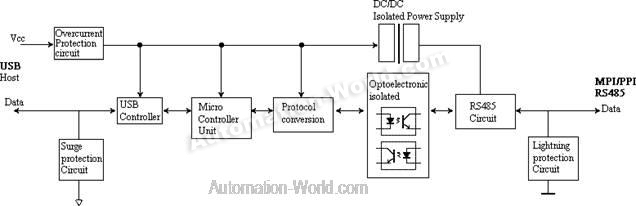

USB/MPI+ V 4.0 is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection circuit for the USB and RS485 interface. It support hot plug. It’s suitable for S7-300/400/200 series PLC. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system.

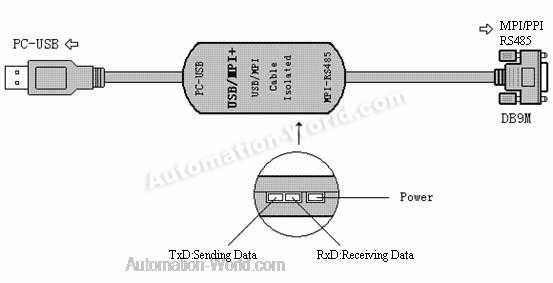

USB/MPI+ principle and figure structure:

Indicator State

Functions
●    Support STEP7 V5.2 and higher,STEP7 Micro/Win 4.0 and higher
●    Fully compatible with USB V2.0
●    Power supply by USB port(100mA). with overcurrent Protection and Surge Protection
●    High optoelectronic isolation voltage up to 1000VDC
●    The USB port design with surge protection.
●    The RS485 port design with overcurrent protection and lightning
protection:Ipp=100A(10/700us,4KV) .Accord to the standard:ITU-TK20/21,VDE0433. ±15KV ESD Protection.
●    Baud rate of MPI port on PLC: 19.2Kbps,187.5Kbps,1.5Mbps. automatically adjust.
●    Baud rate of PPI port on PLC: 9.6Kbps,19.2Kbps,187.5Kbps.
automatically adjust.
●    Support long distance communication up to 1000m
●    Working temperature -20~+75′C
●    Length 3 meters.Color:black
●    One pc supports one USB programming cable only

About Long Distance Communication

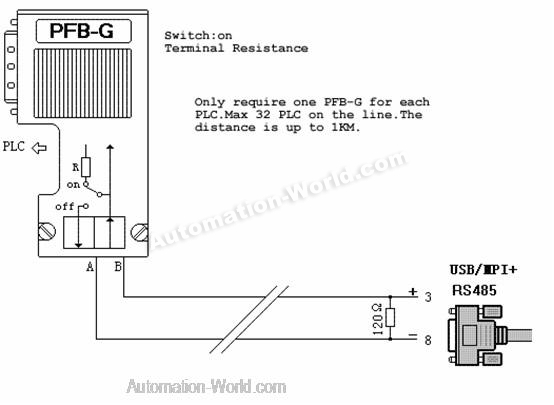

For USB/MPI+ V4.0, the largest communication distance is up to 1000m at the communication speed of 187.5Kbps. It needs to splice 120ohm terminal resistance between 3 and 8 pin on the RS485 port(DB9 Male) to eliminate signal reflection. But requires one PFB-G for each PLC.

Please contact me if you have any question.
